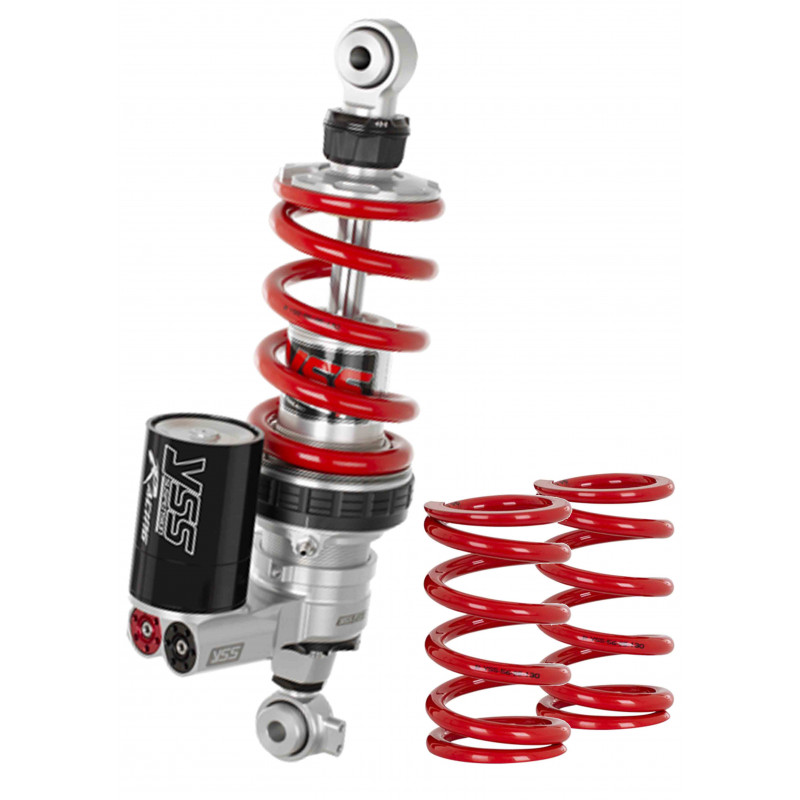

SHOCK ABSORBER RC 390 FULL RACING 2014 & Above

KTM-RC 390 FULL RACING
MU456-300H2RWJ-46R
Technical InfoYEAR:2014-currentPRODUCT GROUP: RacingSHOCK TYPE:REAR MONO SHOCKPRODUCT TYPE: Bottom External Reservoir Piggy Back Gas ShockABE:-LENGTH:300-310 (MM.)TOP:12×32 (MM.)BOTTOM:12×32 (MM.)SPRING:56-130-130 (MM.)PISTON SIZE:45 (MM.)SHAFT SIZE:16 (MM.)
PNEUMATIC SPRING PRELOAD ADJUSTABLE
Pneumatic Preload Adjuster makes Race Sag Adjustment Quickly and Easily.
HIGH-LOW SPEED
Adjustable Hi-Low Speed Compression a zenith of the compression control technology. H-L valve is designed to maintain and control the flow and the high speed valve is set to active when the oil pressure is too high so the shocks will not get Hydraulic Lock.
REBOUND ADJUSTABLE
Rebound Adjustable is to control the recovery of the shock absorber. Fast or slow depending on driver needs. It is designed to have a volume control knob needle shaft Free Bleed oil through hole and the knob Rebound is designed to sense the adjusted time adjustment dial.
LENGTH ADJUSTABLEAdjustable length. It helps increase the length of the shock absorber. The two types can be upgraded to 10 mm or adjustable lengths +/- 5 mm.
