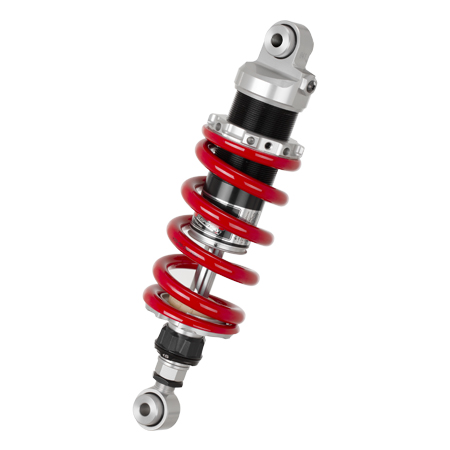

SHOCK ABSORBER RC 390 2014 & Above

KTM RC 390
MZ456-300TRL-46-85
Technical InfoYEAR:2014-currentPRODUCT GROUP: ToplineSHOCK TYPE:REAR MONO SHOCKPRODUCT TYPE: Emulsion Gas ShockABE:-LENGTH:295-305 (MM.)TOP:10×32 (MM.)BOTTOM:10×32 (MM.)SPRING:56-130-150 (MM.)PISTON SIZE:45 (MM.)SHAFT SIZE:16 (MM.)
THREAD SPRING PRELOAD
Thread Spring Preload or adjustable spring screw. By threading the cylindrical shock absorbers, user can turn the preload to fine tune the spring and tighten a provided bolt to fix the ring in its position.
REBOUND ADJUSTABLE
Rebound Adjustable is to control the recovery of the shock absorber. Fast or slow depending on driver needs. It is designed to have a volume control knob needle shaft Free Bleed oil through hole and the knob Rebound is designed to sense the adjusted time adjustment dial.
LENGTH ADJUSTABLE
Adjustable length. It helps increase the length of the shock absorber. The two types can be upgraded to 10 mm or adjustable lengths +/- 5 mm.
